YS-65JLX 高速顆粒包裝機

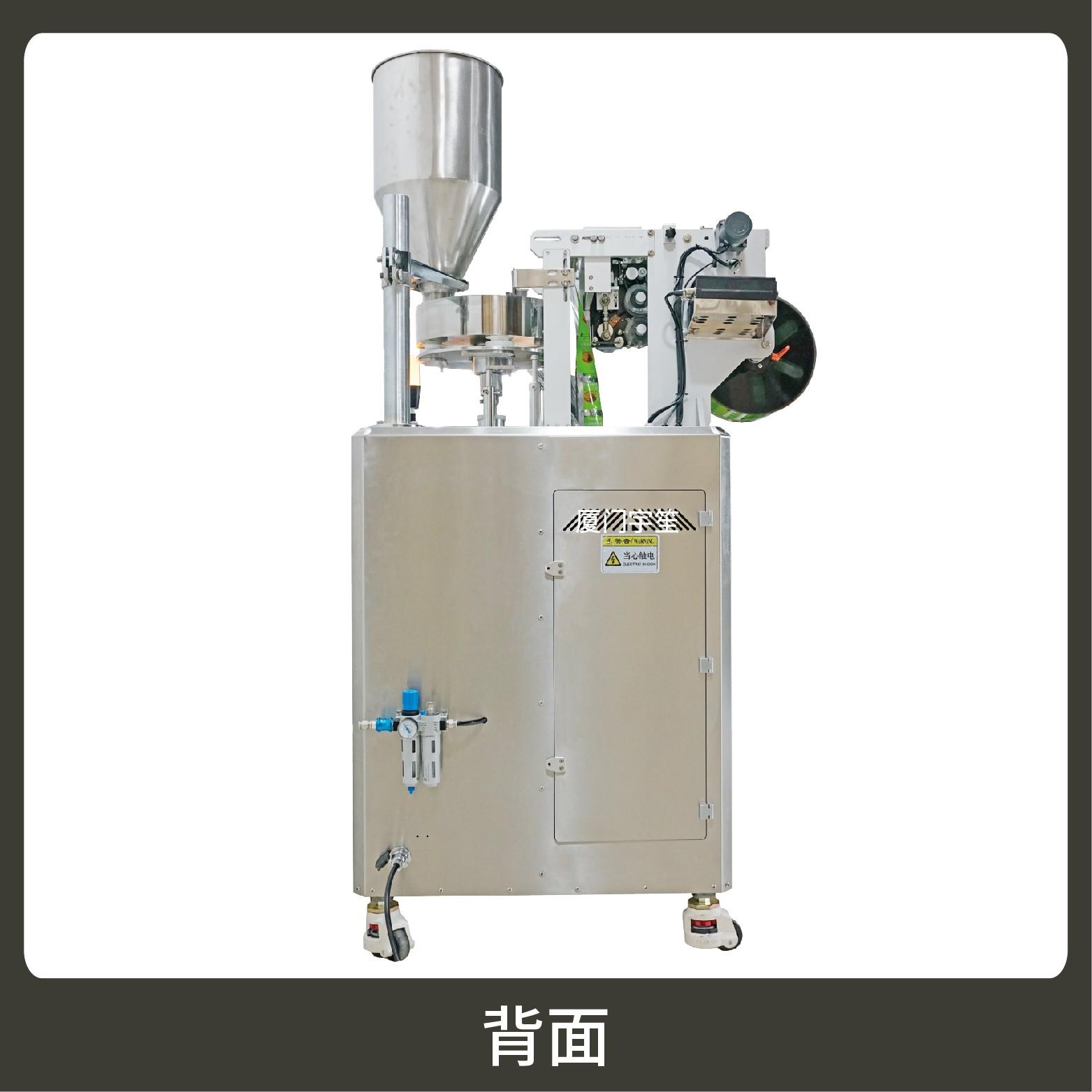

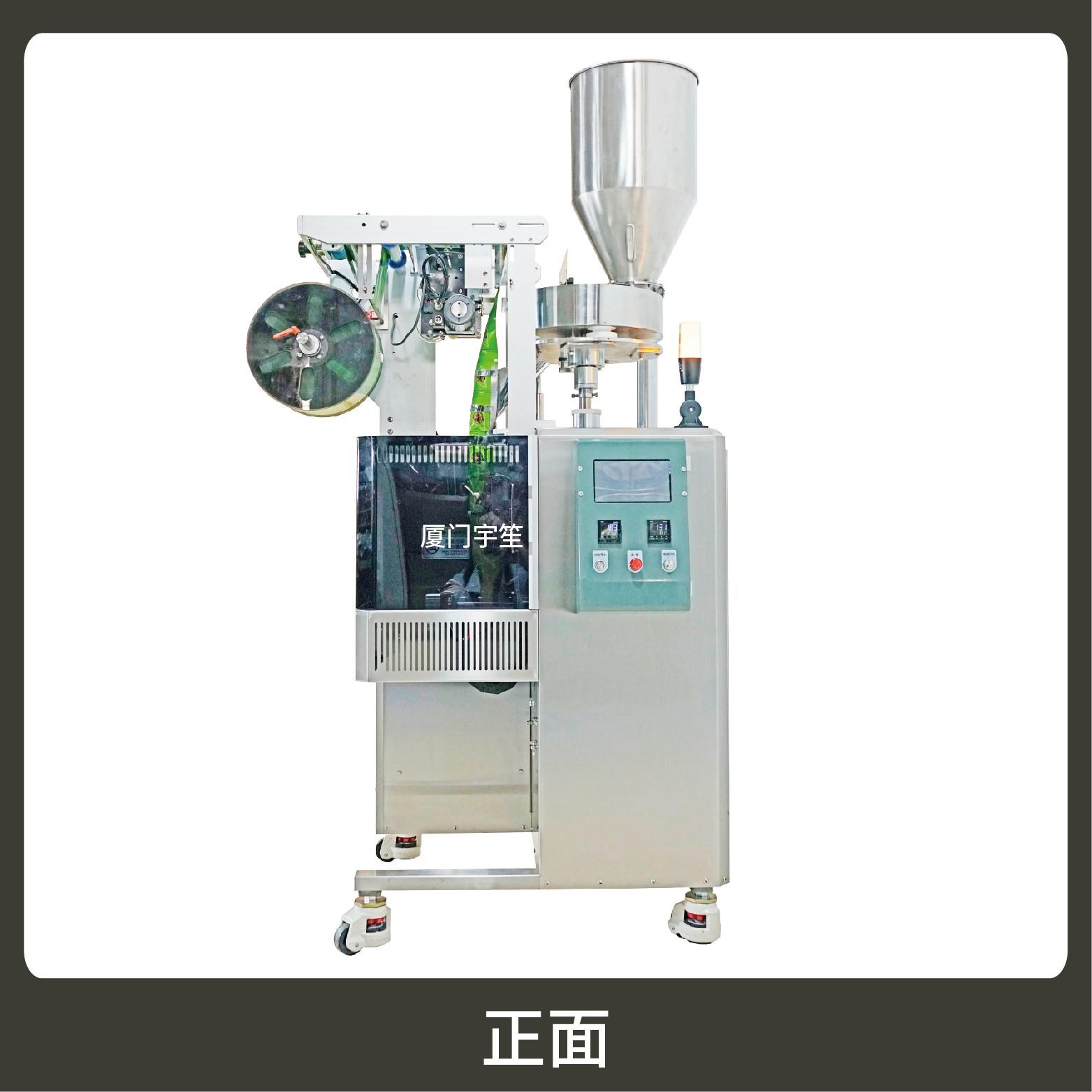

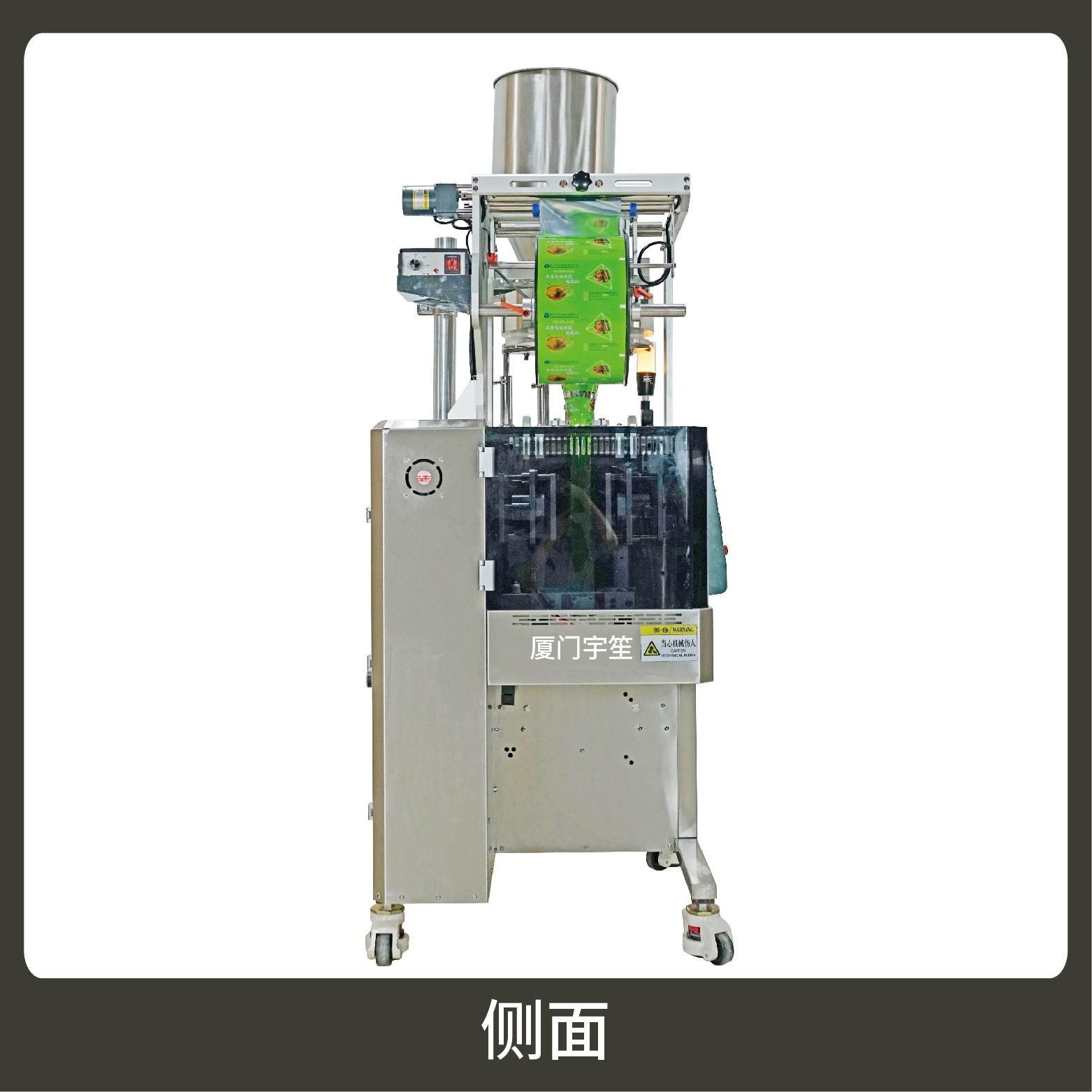

YS-65XBK高速顆粒包裝機
特點：
1、適用于各行業中堅果、炒貨、干果、餌料、中藥等顆粒狀物品的計量包裝。
Suitable for the metering and packaging of granular items such as nuts, roasted snacks, dried fruits, fishing bait, and traditional Chinese medicine (TCM) in various industries.

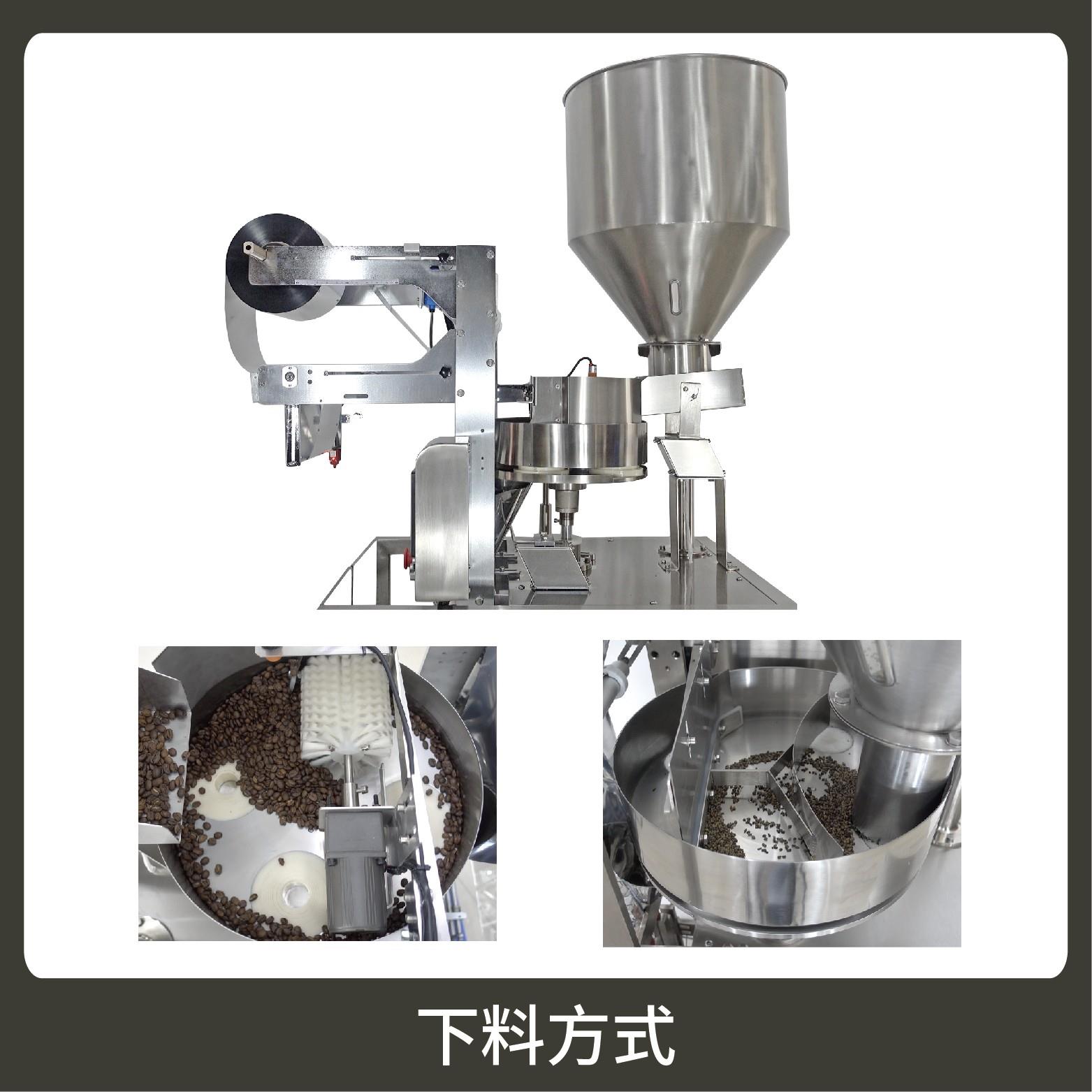

2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：composite film.
封口方式 Sealing Type
三邊封口 背封封口
Three sides Sealing/ Back sealing
技術參數：
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 180 mm
Bag Size 寬 ( W ) : 20 - 100 mm
包裝速度：60 - 130 bags / min
Packing Speed
外型尺寸：790 * 1050 * 1950 mm
Dimension ( L * W * H )
整機重量：245kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.35kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于各行業中堅果、炒貨、干果、餌料、中藥等顆粒狀物品的計量包裝。
Suitable for the metering and packaging of granular items such as nuts, roasted snacks, dried fruits, fishing bait, and traditional Chinese medicine (TCM) in various industries.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：composite film.
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 180 mm
Bag Size 寬 ( W ) : 20 - 100 mm
包裝速度：60 - 130 bags / min
Packing Speed
外型尺寸：790 * 1050 * 1950 mm
Dimension ( L * W * H )
整機重量：245kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.35kw
Total Power
氣 源：≥0.6Mpa
Gas source
適用于各行業中堅果、炒貨、干果、餌料、中藥等顆粒狀物品的計量包裝。
Suitable for the metering and packaging of granular items such as nuts, roasted snacks, dried fruits, fishing bait, and traditional Chinese medicine (TCM) in various industries.
