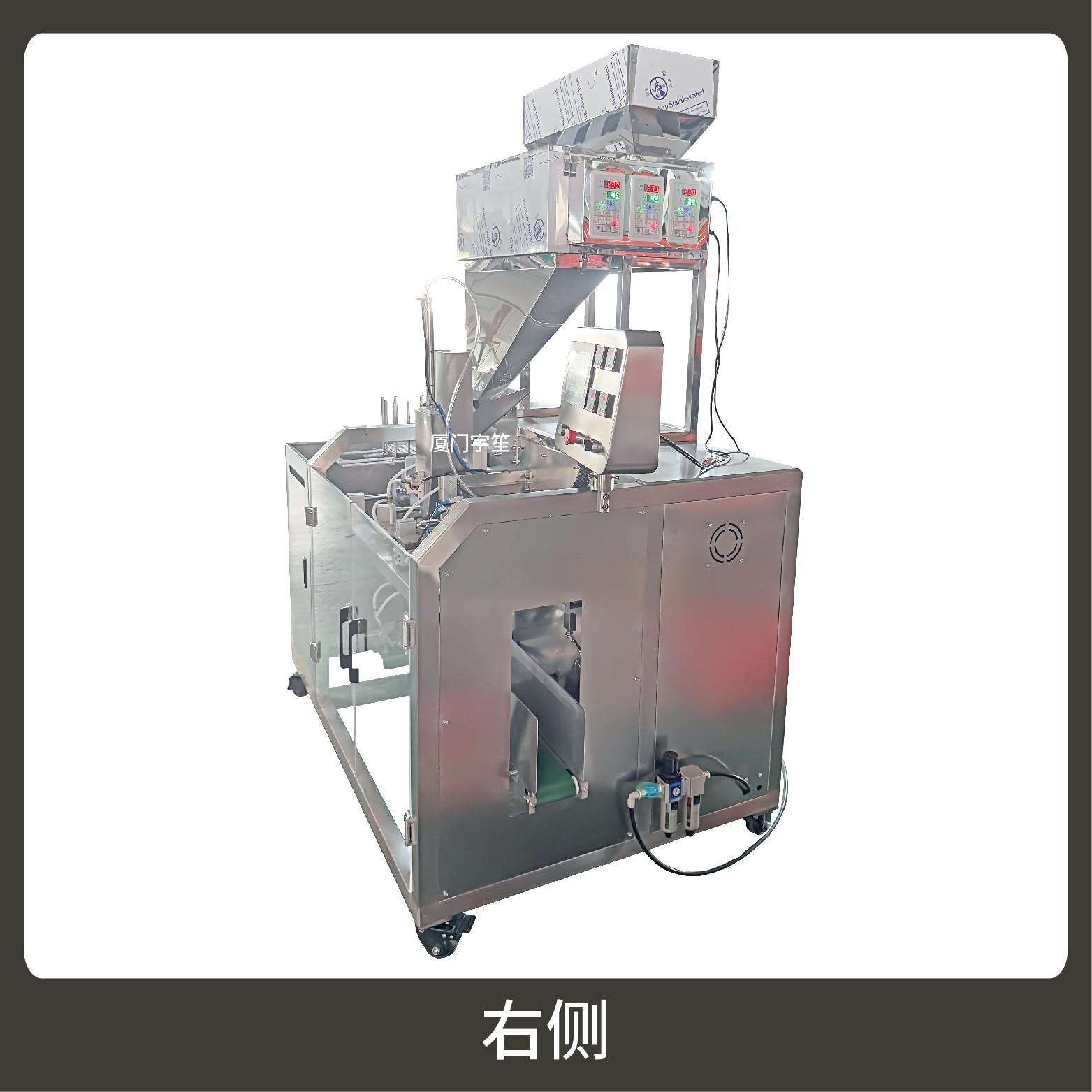

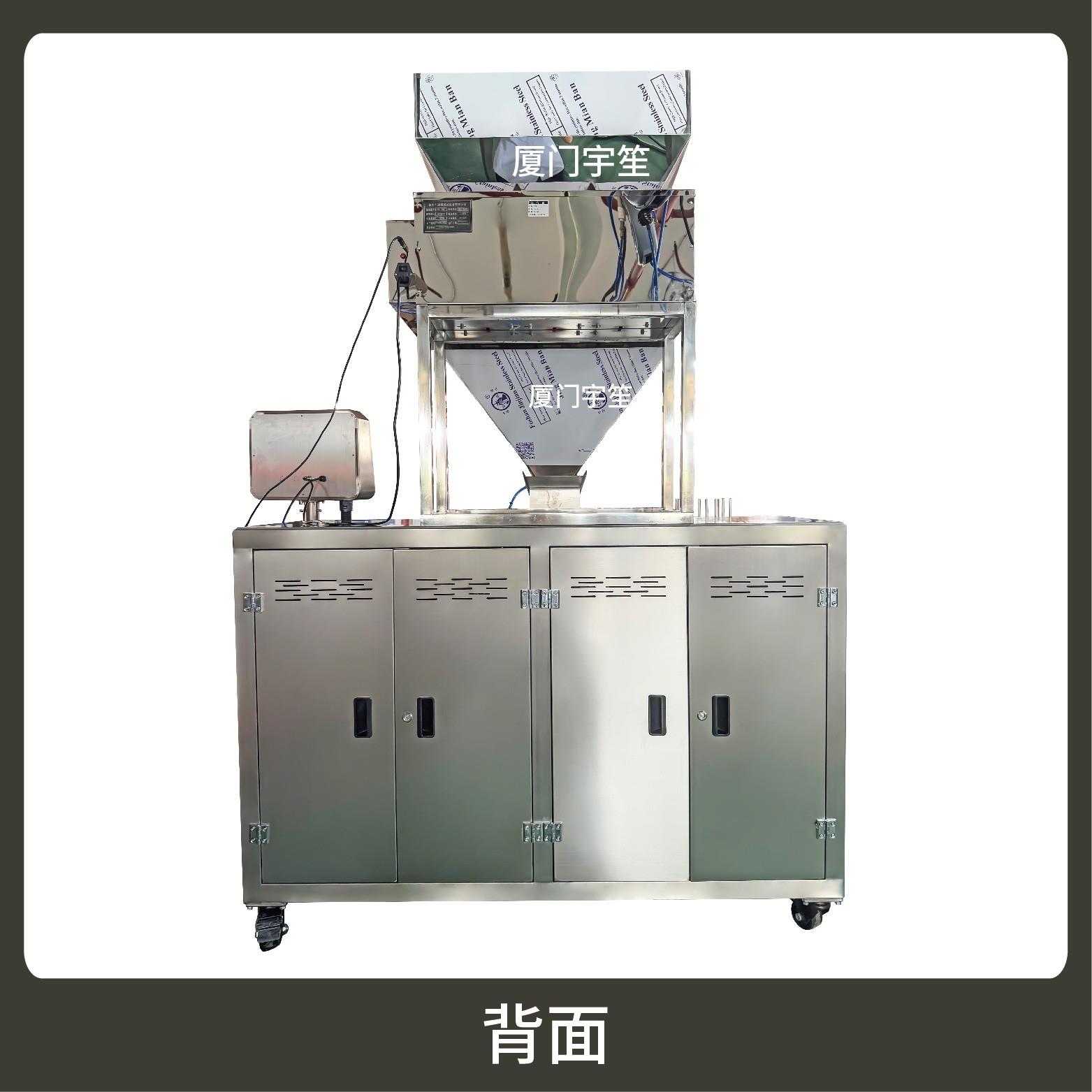

YS-160 M袋真空顆粒包裝機
YS-SP160 給袋抽真空包裝機（M袋）
特點：
1、適用于寵物食品（貓糧、狗糧、貓砂等）、休閑食品（堅果、鍋巴等）、咖啡豆、茶葉等物品的M袋計量包裝。
Suitable for the M-shaped bag metering and packaging of items like pet food (cat food, dog food, cat litter, etc.), snack foods (nuts, rice crackers, etc.), coffee beans, and tea leaves.
2、包裝流程全自動，無需人工操作，可抽真空、充氮?dú)?，組合下料。可根據充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.
3、采用觸摸屏操作，PLC控制，二次封口更牢固，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

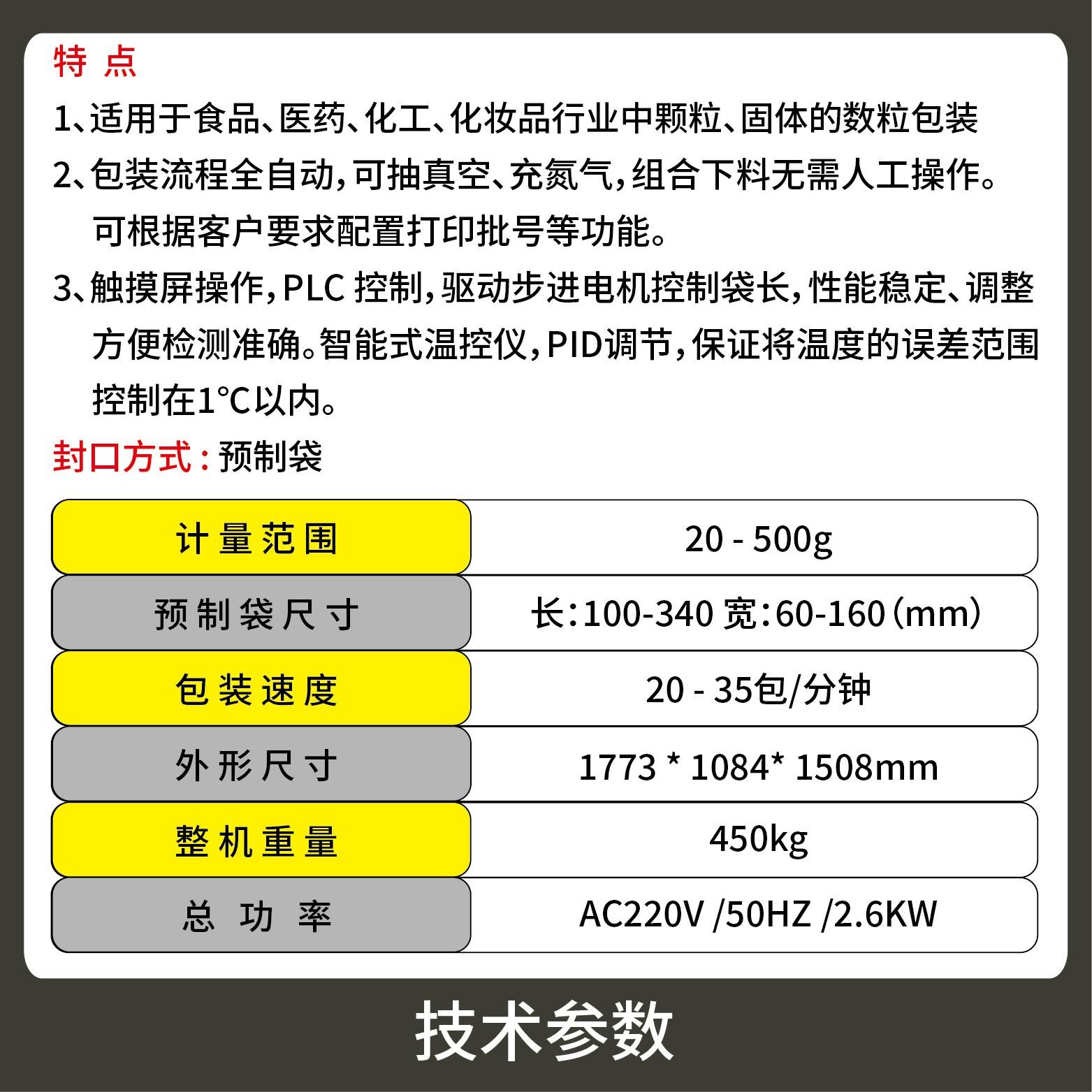

技術參數：
計量范圍：20-500g（根據物料特性而定）
Measuring Scope
預制袋：長 ( L ) ：100 - 340mm
Prefab bag 寬 ( W ) ：60 - 160mm
包裝速度：10 - 25bags / min（根據物料特性而定）
Packing Speed
外型尺寸：1773 * 1084 * 1508mm（主機尺寸）
Dimension ( L * W * H )
整機重量：450 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
